Butler & Rose Designer 3 Column Horizontal Radiator - Raw Metal Finish - 600mm Tall

Rated 5.00/5 from 1 customer review
Please select an option

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £81.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £61.25 with Clearpay Learn more about Clearpay

What's great about it?

  • Available in 4 sizes
  • Made from hard-wearing mild steel
  • Industrial style Raw Metal finish
  • Traditional 3 column horizontal design produces an extremely high heat output
  • Suitable for use on central heating systems only
  • 5 year manufacturer's guarantee

Read full product description

Offer

Features:
  • Available in 4 sizes - please select an option above
  • Made from hard-wearing mild steel with a stunning Raw Metal finish for a true industrial look
  • Exposed welding joints add to the industrial aesthetic of the radiator
  • Suitable for use on central heating systems only
  • 3 column vertical design produces an extremely high heat output - read more about BTUs in our handy guide and why they're vital to know when choosing a radiator, then use our BTU calculator to work out what heat output you need for the space in your home
  • Select a size option above to see the heat output in the specification box below
  • Supplied with wall brackets, fixings and air vents
  • Radiator valves and optional slip on feet sold separately - please see our recommended extras
  • 5 year manufacturer's guarantee

Downloads
Technical Specifications
Product Overview
Product Code COL-3-60-83-RM
Type Column Radiators, Designer Radiators, Horizontal Radiators
Brand Butler & Rose
Brand Range Butler & Rose Designer Column
GuaranteeMore information 5 Years

Guarantee

All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Orientation Horizontal
Material Mild Steel
Number of Columns 3 Columns
Number of SectionsMore information 18 Sections

Radiator Sections

When looking straight on at your radiator, this is the number of individual sections with gaps in between you’ll be able to see. A section can have multiple columns within it, the number of sections relates to how many rows of columns your radiator has.

Style
Finish Raw Metal
Shape Curved
Mounting Type Wall Mounted
Style Traditional

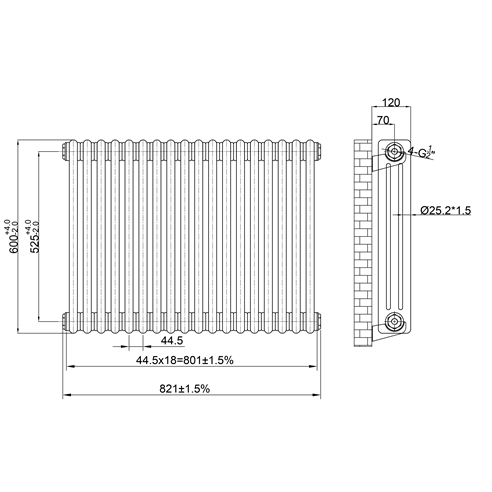

Dimensions
Wall to Face (mm)More information 120
Wall to Pipe Centres (mm)More information 70
Wall Distance (mm)More information 20
Depth (mm) 100
Width (mm) 821
Height (mm) 600
Pipe Centres (mm)More information 821

Wall to Face

Wall to face is the distance from the wall to the furthest point on the front of the radiator. This figure is an indicator of how far your product will protrude into the room.

Wall to Pipe Centres

This measurement will show you how far from the wall the centre of the pipes for your radiator will need to be. It is an indication of how far away the pipe inlets for the radiator need to be from the wall which is useful if you are looking to install a radiator using your existing pipework.

Wall Distance

This is a measure of the gap between the back of the radiator and the wall. Wall distance is an indication of how much space there will be behind your radiator.

Pipe Centres

This is the distance between the centre of the two pipe inlets on your radiator or towel rail. This figure is an indication of where the two pipes for your radiator will need to go and can be helpful if you want to install a radiator using your existing pipes.

Heat output
Fuel SourceMore information Central Heating
Heat Output (BTU∆t 50ºC)More information 3497
Heat Output (BTU∆t 60ºC)More information 4420
Heat Output (Watts)More information 1025

Fuel Source

This is the source of fuel your radiator or towel rail will use to provide heat. Radiators will generate heat through central heating systems, electricity, or a combination of both with dual fuel.

Central Heating:
These radiators will generate heat through the water pumped round your central heating system.

Electric:
Electric radiators contain fluid heated by an electrical element. They plug into a socket or are wired directly into the mains.

Dual Fuel:
Dual fuel radiators are able to run on both central heating and electric power. They contain a ‘summer’ heating element which will allow you to use your radiator in warmer months without needing to turn on your entire central heating system.

Heat Output (BTU∆t 50ºC)

BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 50ºC is the standard output of boilers in the UK & Europe, so this figure is an indication of the heat output (BTU) your radiator will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our calculator.

Heat Output (BTU∆t 60ºC)

BTU (British Thermal Units) is a measure of the heat output of radiators. ∆t 60ºC was previously the standard output of boilers in the UK (the UK has now aligned with the rest of Europe to use ∆t 50ºC). BTU ∆t 60ºC is an indication the output in BTU your radiators will give you at this standard temperature. To find out the BTU you need for rooms in your home, take a look at our calculator.

Watts

Watts is a measure of heat output used for electric radiators, with a higher watt figure meaning a higher heat output. Purchasing a radiator that has the correct wattage will ensure your room will be at a comfortable temperature without wasting energy.

By using our BTU calculator, you can calculate the number of watts your radiator needs to adequately heat your room.

(1)
Rated 5.00/5 from 1 customer review

£269.99

Was £299.99

Advice guides
